Intro

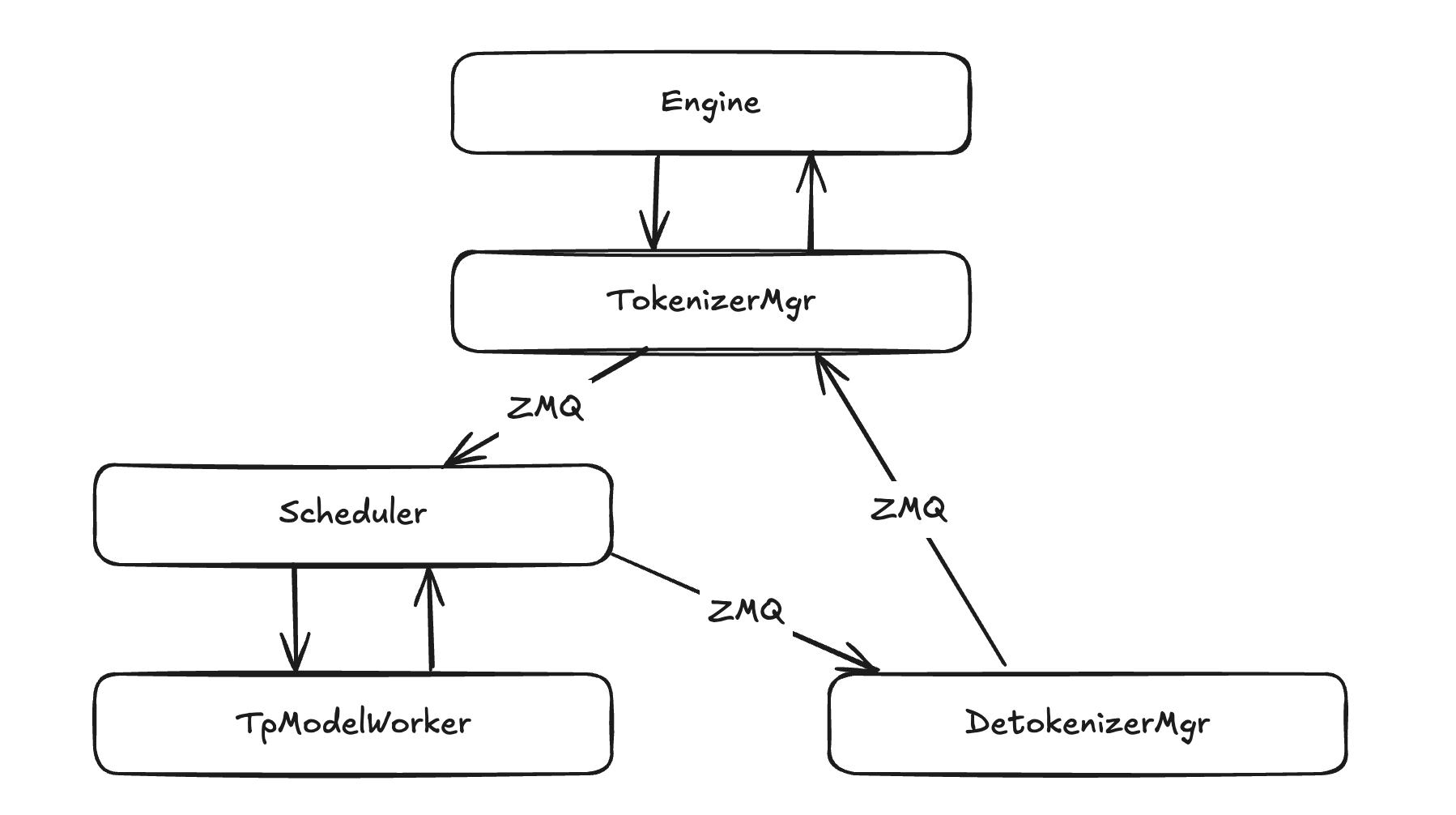

Sglang Runtime is mainly composed of three components: TokenizerManager, Scheduler, and DetokenizerManager.

Overall

[WIP] Key Features

• Dynamic Feedback Schudule
• Chunked Prefill
• DP/TP Implementation
• Coputation & Communication Overlap

Take aways

• Challenge: Need to allocate variable-length memory space for dynamic workloads
• Solution: Treat memory as pageable, shareable asset
• Challenge: Need to batch process requests with different completion times
• Solution: Continuous batching and dynamic scheduling
• Challenge: Need to reuse computations for overlapping or prefixed data
• Solution: Prefix caching and radix-based sharing
• Challenge: Need to accelerate processing under uncertainty
• Solution: Speculative decoding and fused operations
• Challenge: Need to scale across distributed resources efficiently
• Solution: Tensor and pipeline parallelism with minimal communication

Reference

• Sglang source code up to Commit 0346489 https://github.com/sgl-project/sglang
• https://github.com/zhaochenyang20/Awesome-ML-SYS-Tutorial/blob/main/sglang/kvcache-code-walk-through/readme-CN.md
